Specialists in veterinary device development in Madrid

Numio Technologies, specialists in the development of devices for veterinary use.
NumioVET-MONITOR is a digital physiological parameter monitor for veterinary applications. It is a self-contained device that helps monitor animals during delicate medical procedures or when anesthetics are required.
Designed and manufactured in Spain.
Un monitor numiovet muestra una variedad de gráficos

Functional characteristics

  • 10” Color User Interface
  • Versatile and easy to use
  • Tactile
  • Configurable alarms
  • Dimensions (lxwxh) 350 x 110 x 300 mm
  • Weight 3.5 kg

Parameter graphs:

a) Pulmonary pressure,

b) Pulmonary flow,

c) Capnography (CO2),

d) ECG (lead II),

e) Pulse oximetry (SPO2),

d) Respiratory loops,

e) Long-term graphics.


Parameter measurements:

  • Peak Inspired Pressure (PIP), Positive Expiratory Pressure (PEEP) and Plateau Pressure (PP),
  • Inspired flow (Fli), expired flow (Fle) and tidal volume (Vt),
  • Respiratory rate (RR) and heart rate (HR),
  • O2 saturation (SPO2) and expired CO2 (CO2e),
  • Pulmonary compliance,
  • Temperature (depending on model).

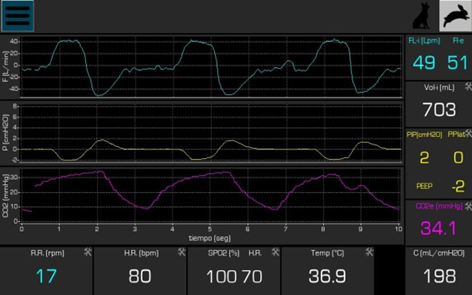

numioVET-MONITOR charts

Una pantalla de computadora con un montón de gráficos en ella
