Specialists in veterinary device development in Madrid

Numio Technologies, specialists in the development of devices for veterinary use.
NumioV-MRI is a mechanical ventilator designed to work in MRI environments and use special gases. It monitors key variables of the animal's respiratory physiology, providing flexibility, operability, and simplicity to the experiment.
Designed and manufactured in Spain.

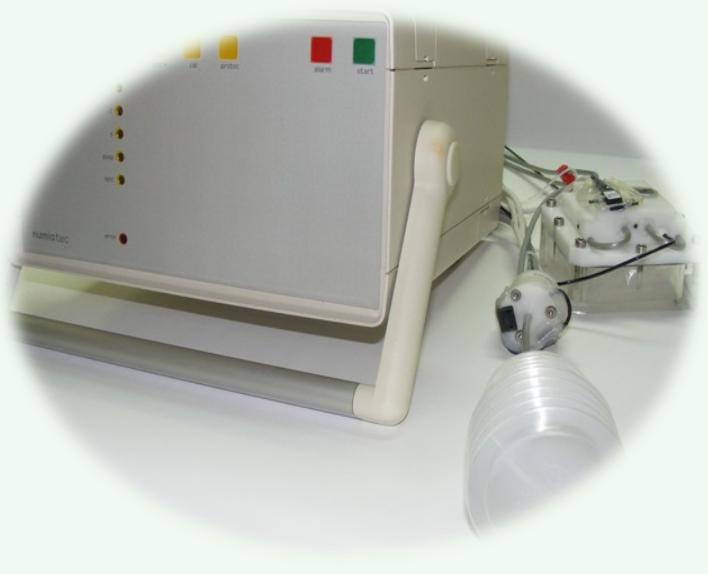

Una caja blanca con botones rojos, verdes y amarillos.

Functional characteristics

  • Study of pulmonary dynamics and physiology, especially using hyperpolarized fluorinated and noble gases
  • Cardiology applications: complete elimination of respiratory motion artifact
  • Certain neurological studies, especially MRI: allow precise monitoring of the animal's oxygenation

Parameter graphs:

a) Pulmonary pressure,

b) Pulmonary flow.

Parameter measurements:

  • Peak Inspired Pressure (PIP), Positive Expiratory Pressure (PEEP) and Plateau Pressure (PP),
  • Inspired flow (Fli), expired flow (Fle) and tidal volume (Vt),
  • Respiratory rate (RR),
  • Pulmonary compliance.

Parameter graphs:

  • Selection of tidal volume (Vt),
  • Selection of the maximum pulmonary pressure,
  • PEEP selection,
  • Inspiratory pause selection,
  • Respiratory Rate Selection,
  • I:E ratio selection,
  • Selection of protective lung pressure.

numioV-MRI Gallery

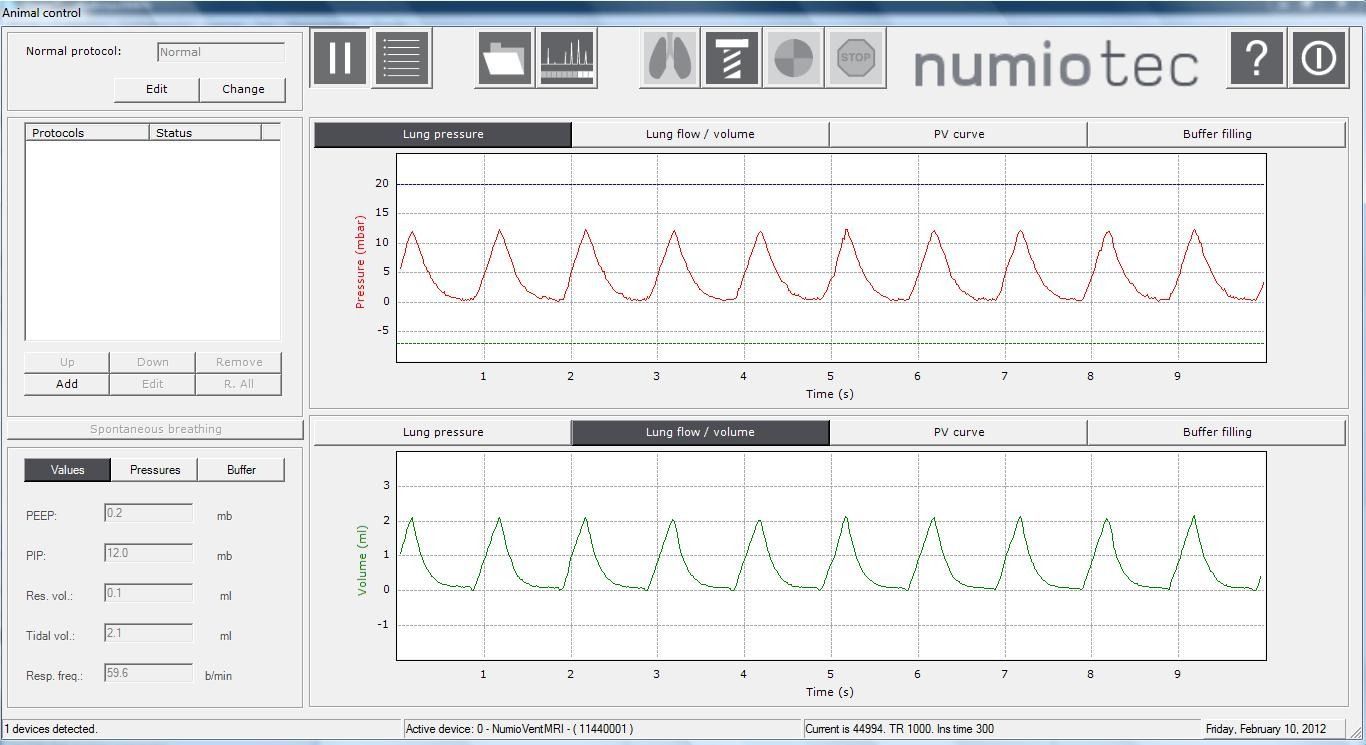

Una pantalla de computadora con el logotipo de Numiotec.
